Systems of chemical reactions in FEniCS

Here’s a sample from the upcoming FEniCS Tutorial that I’m currently working on with Hans Petter Langtangen. As a simple demonstration of how complex problems can be solved with a minimal amount of code in FEniCS, we simulate a system of chemical reactions taking place in a channel with the flow governed by the incompressible Navier-Stokes equations. The reaction itself is modeled as a first-order reaction using the standard advection-diffusion-reaction equation:

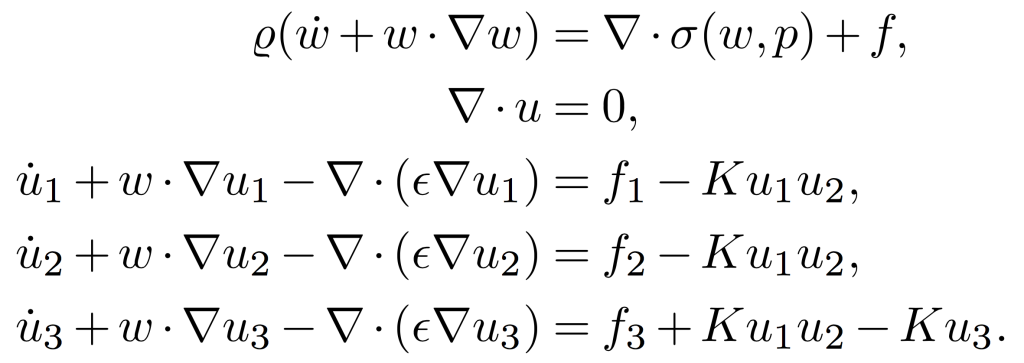

Reaction system

For the velocity field, we use a previously computed solution of the incompressible Navier-Stokes equations which we can read/write using a FEniCS `TimeSeries`. The variational problem for the equations themselves are easily implemented in FEniCS:

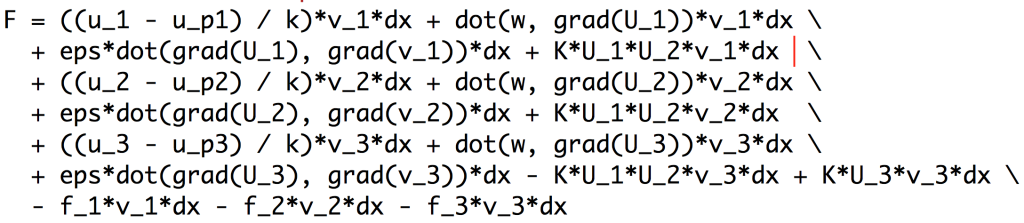

Reaction system code

The solution is a quite beautiful wavelike pattern as illustrated in the following clip which plots the concentrations of the three species.

The complete code for the above simulation looks as follows.

from fenics import *

T = 5.0            # final time
num_steps = 500    # number of time steps
dt = T / num_steps # time step size
eps = 0.01         # diffusion coefficient
K = 10.0           # reaction rate
theta = 1.0        # implicitness parameter for time-stepping

# Read mesh from file
mesh = Mesh('channel.xml.gz')

# Define function space for velocity
W = VectorFunctionSpace(mesh, 'P', 2)

# Define function space for system
P1 = FiniteElement('P', 'triangle', 1)
element = MixedElement([P1, P1, P1])
V = FunctionSpace(mesh, element)

# Define test functions
v_1, v_2, v_3 = TestFunctions(V)

# Define functions for velocity and concentrations
w = Function(W)
u = Function(V)
u_p = Function(V)

# Split system functions to access components
u_1, u_2, u_3 = split(u)
u_p1, u_p2, u_p3 = split(u_p)

# Define source terms
f_1 = Expression('pow(x[0]-0.1, 2) + pow(x[1]-0.1, 2) < 0.05*0.05 ? 0.1 : 0',
                 degree=1)
f_2 = Expression('pow(x[0]-0.1, 2) + pow(x[1]-0.3, 2) < 0.05*0.05 ? 0.1 : 0',
                 degree=1)
f_3 = Constant(0)

# Define expressions used in variational forms
U_1 = (1 - Constant(theta))*u_p1 + Constant(theta)*u_1
U_2 = (1 - Constant(theta))*u_p2 + Constant(theta)*u_2
U_3 = (1 - Constant(theta))*u_p3 + Constant(theta)*u_3
k = Constant(dt)
K = Constant(K)
eps = Constant(eps)

# Define variational problem
F = ((u_1 - u_p1) / k)*v_1*dx + dot(w, grad(U_1))*v_1*dx \
  + eps*dot(grad(U_1), grad(v_1))*dx + K*U_1*U_2*v_1*dx  \
  + ((u_2 - u_p2) / k)*v_2*dx + dot(w, grad(U_2))*v_2*dx \
  + eps*dot(grad(U_2), grad(v_2))*dx + K*U_1*U_2*v_2*dx  \
  + ((u_3 - u_p3) / k)*v_3*dx + dot(w, grad(U_3))*v_3*dx \
  + eps*dot(grad(U_3), grad(v_3))*dx - K*U_1*U_2*v_3*dx + K*U_3*v_3*dx \
  - f_1*v_1*dx - f_2*v_2*dx - f_3*v_3*dx

# Create time series for reading velocity data
timeseries_w = TimeSeries(mpi_comm_world(), 'ns/velocity')

# Create VTK files for visualization output
vtkfile_u_1 = File('reaction_system/u_1.pvd')
vtkfile_u_2 = File('reaction_system/u_2.pvd')
vtkfile_u_3 = File('reaction_system/u_3.pvd')

# Create progress bar
progress = Progress('Time-stepping')
set_log_level(PROGRESS)

# Time-stepping
t = 0
for n in xrange(num_steps):

    # Update current time
    t += dt

    # Read velocity from file
    timeseries_w.retrieve(w.vector(), t - (1.0 - theta)*dt)

    # Solve variational problem for time step
    solve(F == 0, u)

    # Plot solution
    _u_1, _u_2, _u_3 = u.split(deepcopy=True)
    plot(_u_1, title='u_1', key='u_1')
    plot(_u_2, title='u_2', key='u_2')
    plot(_u_3, title='u_3', key='u_3')

    # Save solution to file (VTK)
    vtkfile_u_1 << _u_1
    vtkfile_u_2 << _u_2
    vtkfile_u_3 << _u_3

    # Update previous solution
    u_p.assign(u)

    # Update progress bar
    progress.update(t / T)

# Hold plot
interactive()



Recent Posts

Recent Comments

Meta

logg Written by:

Anders Logg is Professor of Computational Mathematics at Chalmers University of Technology. His research interests are adaptive finite element methods, high-level automating software systems for solution of PDE, domain-specific languages and compilers in scientific computing, and applications in biomedicine, general relativity, and architecture. Logg is head of the unit for Computational Mathematics and excellence profile leader within Chalmers Area of Advance the Built Environment. He is director of the Swedish Network for Mathematics in Industry and member of the EMS Applied Mathematics Committee and the Swedish National Committee for Mathematics. He is co-founder and a core developer of the FEniCS Project, a leading open-source software for automated solution of PDE. Logg works part-time as scientific advisor to Fraunhofer-Chalmers Centre and Simula Research Laboratory.

9 Comments

  1. Nicholas Danes
    May 31, 2016
    Reply

    Hi Dr. Logg,

    Will there any future documentation with these sorts of problems (systems of ADR equations) with possible stabilization techniques (e.g. SUPG, FEM-FCT, Upwind DG, and/or SOLD methods)?

    My own research uses FEniCS and proper stabilization of these sort of problems has been an issue for myself for the past year (in particular, with positivity perservation of ADR equations). I’ve implemented the FEM-FCT method in my personal code, but it does not play well with the native MPI support nor does it scale with systems of ADR equations. I would like eventually to have complete parallel support in my own research code.

    Thanks for all you do for this project!

    Best,

    Nicholas

    • June 2, 2016
      Reply

      There are already a number of demos distributed as part of FEniCS. Perhaps there will be a chapter on stabilized finite element methods in the second volume of the tutorial.

  2. Hossein
    October 4, 2016
    Reply

    Dear Anders,

    When I run the above code I get the following error:

    V = FunctionSpace(mesh, element)
    TypeError: __init__() takes at least 4 arguments (3 given)

    could you please help with this?

    Best,
    Hossein

    • October 4, 2016
      Reply

      You must be running an old version of FEniCS. Get the latest = v2016.1!

  3. Hossein
    October 5, 2016
    Reply

    Thanks.

    I updated the FEniCS but, again it did not work. I’m using ubuntu 14.04 and version of python is 2.7.6. Are these OK ?

    Thank you for your time.
    Best,
    Hossein

  4. Hossein
    October 5, 2016
    Reply

    Also version of FEniCS is now 1.6.0

  5. Hossein
    October 5, 2016
    Reply

    I also tried

    element = (P1 * P1) * P1

    element = P1 * P1* P1

    element = VectorElement(’P’, ’triangle’, 1, dim=3)

    but again, I get the same error !

  6. October 5, 2016
    Reply

    You should get version 2016.1, not 1.6.0.

  7. Hossein
    October 5, 2016
    Reply

    Thanks.

    It works!
